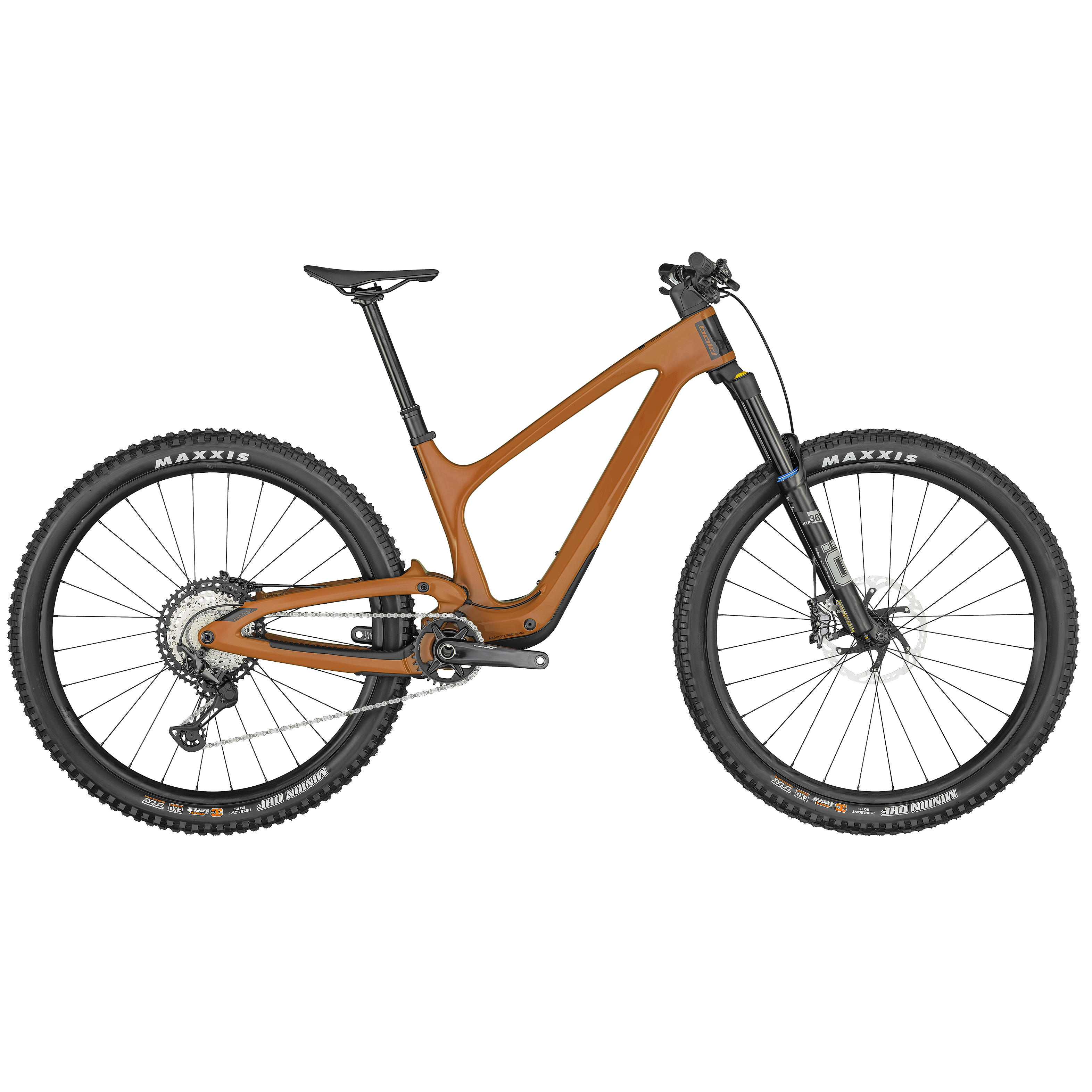

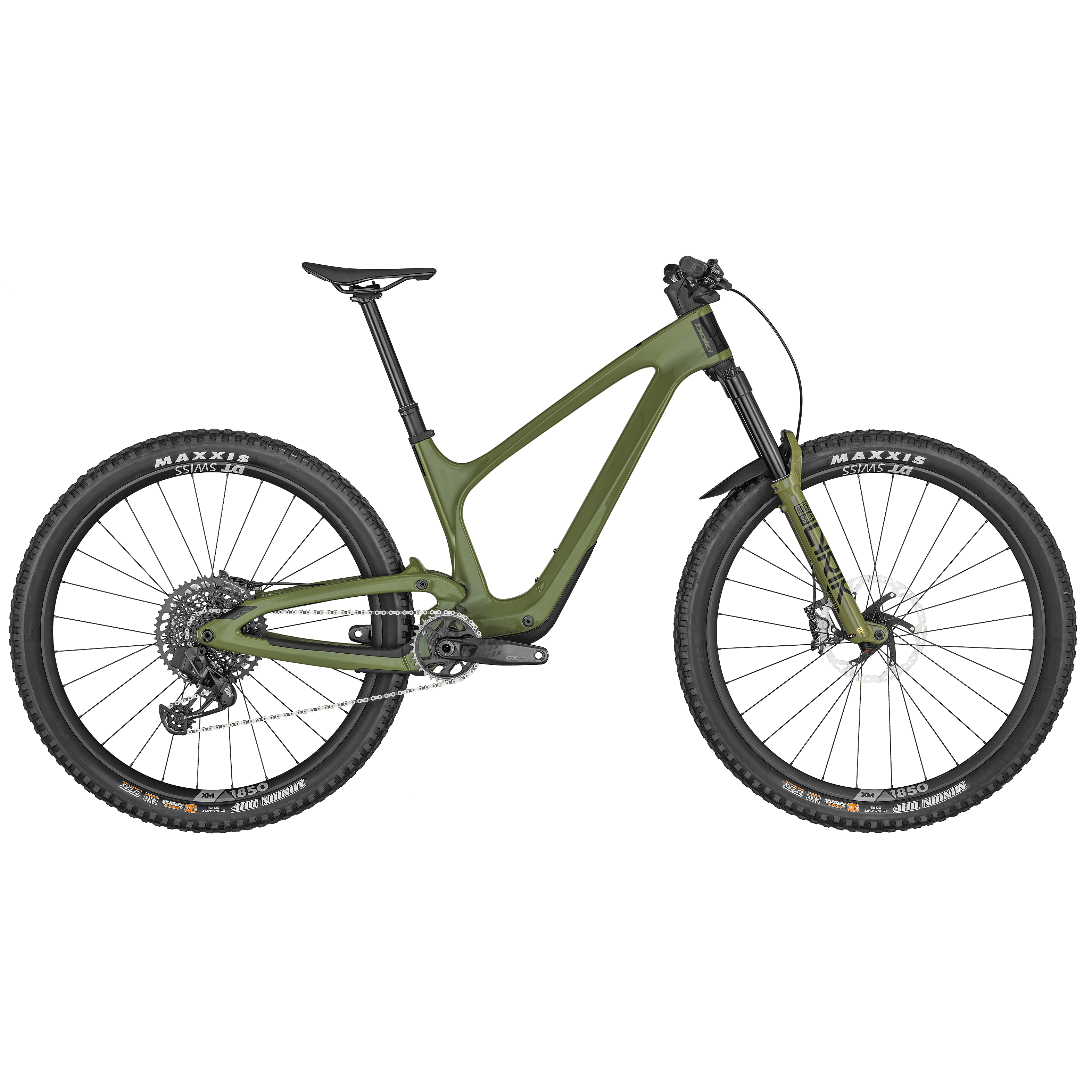

BOLD Linkin 150 Ultimate Bike

Model : 291169

Key Features

  • LINKIN Carbon HMX Frame
  • FOX 36 Float Factory, 150mm
  • FOX Nude 5T Factory EVOL
  • SRAM XX1 Eagle AXS / Wireless
  • Shimano XTR M9120 4 Piston Disc
  • Syncros Revelstoke 1.0S-30 CL
  • Syncros Hixon iC Carbon

$10,499.99

Find a dealer
SPECIFICATIONS
  • The LINKIN 150 is our approach to what the ultimate mountain bike should be. Long days in the backcountry, or just rippin' around your local, this 150mm trail platform brings the best out of every trail. Our integrated suspension design, ISTVP, keeps the center of gravity low between your feet to give the bike a planted but playful ride. An integrated "SAVE-THE-DAY" kit cleverly equips you with all the tools you'll need out in the woods. Is there such thing as n Swiss Army Knife of mountain bikes? If yes, there is a good chance it's the LINKIN 150.
  • Frame

    Bold Linkin 150 / Carbon HMX
    Integrated Suspension Technology / IST VP
    Vario Tech, Head angle and BB height / Syncros Cable Integration System
    BB92 / UDH Interface / 12x148mm with 55mm Chainline
  • Fork

    FOX 36 Float Factory Grip 2 Air / Kashima
    HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle
    44mm offset / tapered steerer
    150mm travel
  • Rear Shock

    FOX NUDE 5T Factory EVOL Trunnion
    Custom travel / geo adj.
    3 modes: Lockout-Traction Control-Descend
    Custom large Air volume / DPS / Kashima / Reb. Adj.
    T185X55mm / Travel 150-100-Lockout
  • Remote System

    TracLoc Technology
    Rear Suspension & Dropper Remote
    3 Rear Suspension modes
  • Rear Derailleur

    SRAM XX1 Eagle AXS / 12 Speed
    Wireless Electronic Shift System
  • Shifters

    SRAM Eagle AXS Rocker Controller
  • Crankset

    SRAM XX1 Eagle
    Carbon crankarm
    DUB / 55mm CL / 32T
  • Chainguide

    Bold custom
  • BB-Set

    SRAM DUB PF 92 MTB Wide / shell 41x92mm
  • Chain

    SRAM CN XX1 Eagle
  • Cassette

    SRAM XX1 XG1299 / 10-52 T
  • Brakes

    Shimano XTR M9120 4 Piston Disc
  • Rotor

    Shimano RT-MT900 CL / 203/F and 180/R
  • Handlebar

    Syncros Hixon iC Carbon
    Size S & M 15mm rise / Size L & XL 25mm rise
    back sweep 8° / 780mm
    Syncros Endurance lock-on grips
  • Seatpost

    Syncros Duncan Dropper Post 1.5 34.9mm
    Size S 170mm / Size M, L & XL 200mm
  • Seat

    Syncros Tofino Regular 1.0
    Carbon rails
  • Headset

    Syncros - Acros Angle adjust & Cable Routing HS System
    Stainless / +-0.6° head angle adjustment
    ZS56/28.6 – ZS56/40 MTB
  • Wheelset

    Syncros Revelstoke 1.0S-30 CL
    F: 15x110mm / R: 12x148mm
    30mm Tubeless ready Carbon rim 28H
    DT Swiss 240 Ratchet EXP 36 / XD Driver
    SRAM TyreWiz / Syncros Axle w/Removable Lever
    with 6mm Allen, T30 and T25 Tools
  • Front Tire

    Maxxis Minion DHF / 2.5" / 60TPI Foldable
    Tubeless Ready / EXO
  • Rear Tire

    Maxxis Minion DHF / 2.5" / 60TPI Foldable
    Tubeless Ready / EXO
  • Extras

    Save the Day Kit
    SRAM AXS Powerpack
    SRAM TyreWiz
    Syncros Fork Fender
  • Accessories

    Syncros Eco Sealant
  • Approx weight in KG

    13Kg / 13.4kg
Use
No Radar Chart Available Currently
Geometry
Geometry of BOLD Linkin 150 Ultimate Bike
