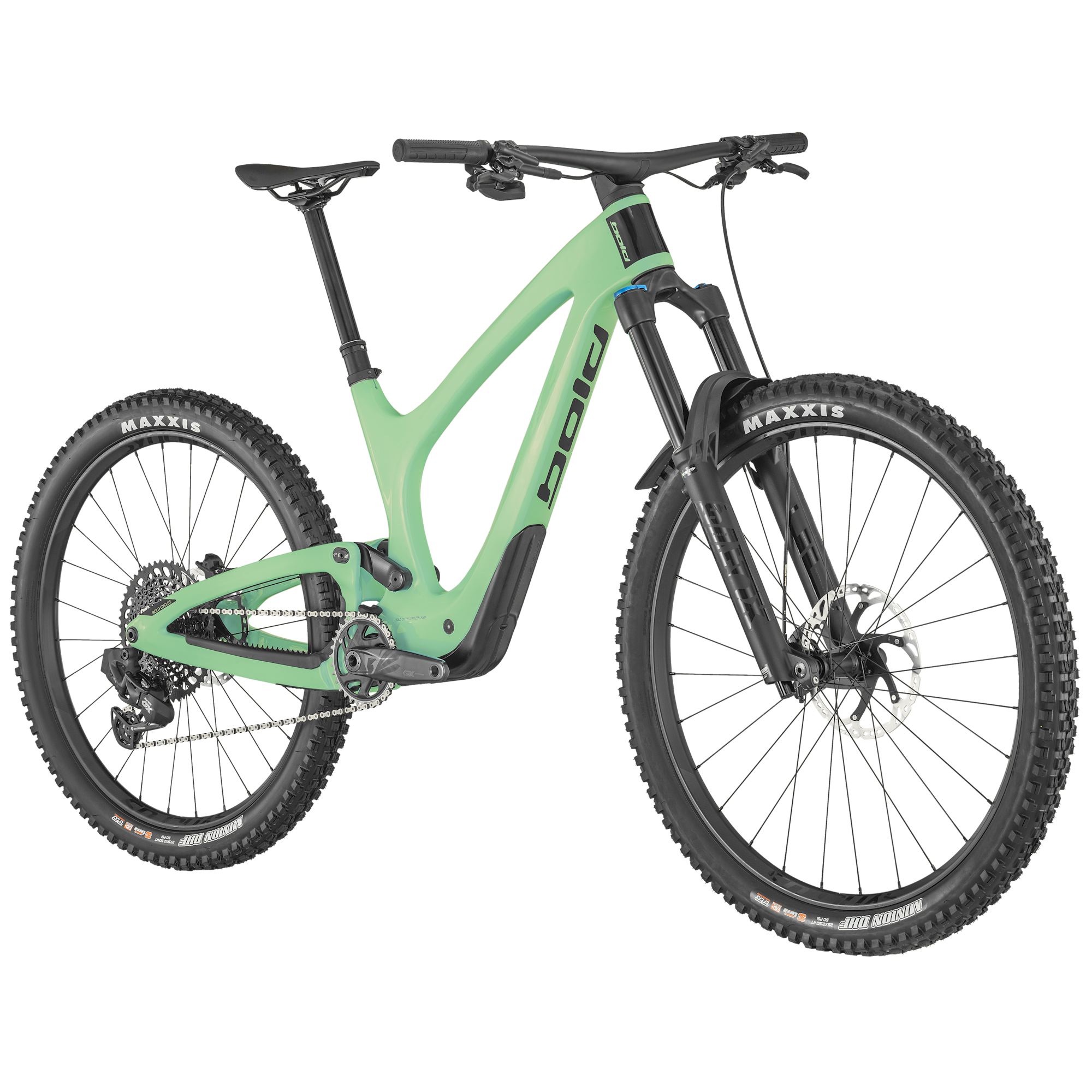

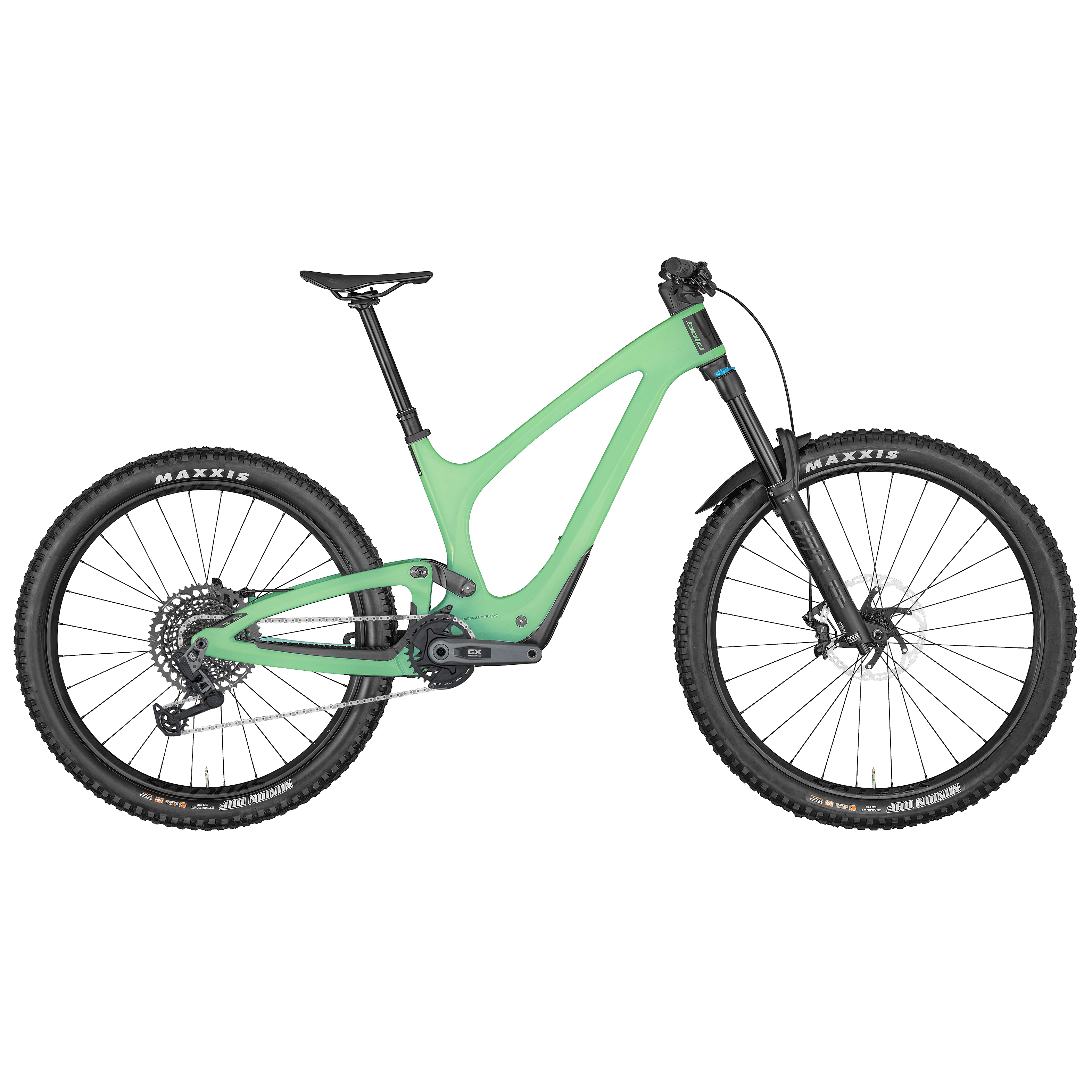

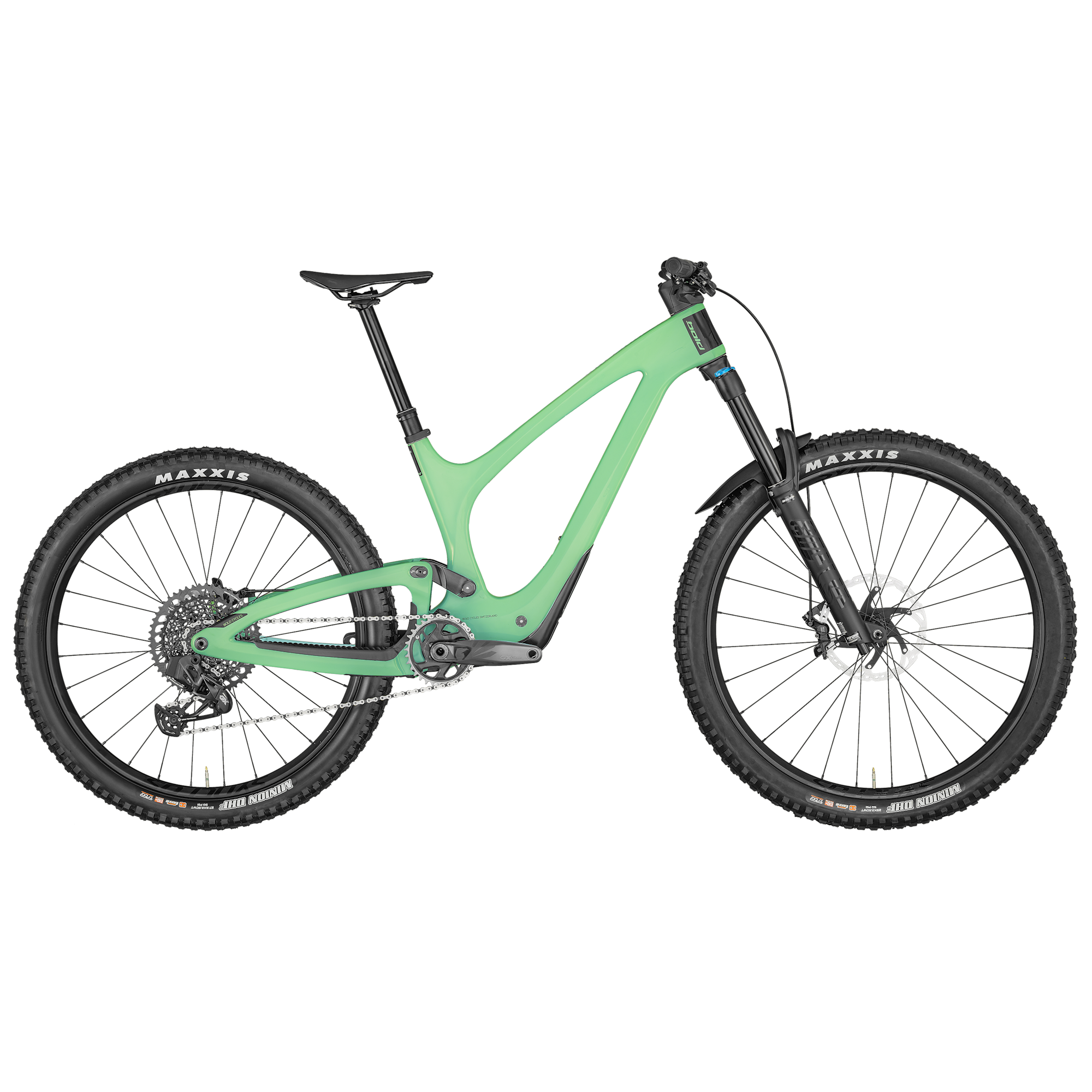

BOLD Unplugged Pro Bike

Model : 291167

BOLD Unplugged Pro Bike
BOLD Unplugged Pro Bike BOLD Unplugged Pro Bike

Key Features

  • UNPLUGGED Carbon HMX Frame
  • FOX 38 Float Perf. Air Grip, 170mm
  • FOX Float X Nude, 160mm / TracLoc
  • SRAM GX Eagle AXS / Wireless
  • Shimano SLX M7120 4 Piston Disc
  • Syncros Revelstoke 2.0
  • Syncros Hixon iC Carbon

1. Size

Size chart
Find a dealer
SPECIFICATIONS
  • Berm slayer, traction machine, race rocket - this bike has many names but one common theme, the BOLD UNPLUGGED is as Enduro as it gets. Equipped with enough travel to stand the biggest impacts and hold the roughest lines, the IST-VP suspension design delivers suspension feel from another world. At the same time the stiffer frame layout gives the UNPLUGGED precise gravity-oriented ride characteristics uncompromised for raw speed and performance. With wheels glued to the ground, the low center of gravity keeps the bike planted and provides a stable and controlled riding. Ideal for racers and park rats alike, the UNPLUGGED means business.

    Please note that bike specifications are subject to change without prior notice.

  • Frame

    Bold Unplugged 160 / Carbon HMX
    Integrated Suspension Technology / IST VP
    Vario Tech / Mullet Ready / Wireless Shifting ONLY
    Head angle adjustable / Syncros Cable Integration System
    BB92 / UDH Interface / 12x148mm with 55mm Chainline

  • Fork

    FOX 38 Float Performance Air Grip
    Kabolt 15x110mm axle / tapered steerer
    44mm offset / Reb. Adj. / Lockout / 170mm travel

  • Rear Shock

    FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion
    SCOTT custom w. travel / geo adj.
    3 modes: Climb-Traction Control-Descend
    Custom large Air volume / Comp & Reb. Adj.
    T185X55mm / Travel 160-100-Climb

  • Remote System

    TracLoc Technology
    Rear Suspension & Dropper Remote
    3 Rear Suspension modes

  • Rear Derailleur

    SRAM GX Eagle AXS / 12 Speed
    Wireless Electronic Shift System

  • Shifters

    SRAM GX Eagle AXS Rocker Controller

  • Crankset

    SRAM GX Eagle DUB
    55mm CL / 32T

  • Chainguide

    Bold custom

  • BB-Set

    SRAM DUB PF 92 MTB Wide / shell 41x92mm

  • Chain

    SRAM CN GX Eagle

  • Cassette

    SRAM XG1275 / 10-52 T

  • Brakes

    Shimano SLX M7120 4 Piston Disc

  • Rotor

    Shimano SM-RT76 / 6 Bolt / 203/F and 180/R

  • Handlebar

    Syncros Hixon iC Carbon
    Size S & M 15mm rise / Size L & XL 25mm rise
    back sweep 8° / 780mm
    Syncros Endurance lock-on grips

  • Seatpost

    Syncros Duncan Dropper Post 1.5 34.9mm
    Size S 170mm / Size M, L & XL 200mm

  • Seat

    Syncros Tofino 1.5 Regular
    Titanium rails

  • Headset

    Syncros - Acros Angle adjust & Cable Routing HS System
    +-0.6° head angle adjustment
    ZS56/28.6 – ZS56/40 MTB

  • Wheelset

    Syncros Revelstoke 2.0 6 Bolt
    F: 15x110mm / R: 12x148mm
    30mm Tubeless ready rim 28H / XD Driver
    Syncros Axle w/Removable Lever with Tool
    Size S & M F29 - R27.5 Mullet / Size L & XL F&R 29

  • Front Tire

    Maxxis Minion DHF / 29x2.5" / 60TPI Foldable
    Tubeless Ready / EXO+

  • Rear Tire

    Maxxis Minion DHF / 2.5" / 60TPI Foldable
    Tubeless Ready / EXO+
    Size S & M 27.5 / Size L & XL 29

  • Extras

    Save the Day Kit
    SRAM AXS Powerpack
    Syncros Fork Fender

  • Accessories

    Syncros Eco Sealant
Use
No Radar Chart Available Currently
Geometry
Geometry of BOLD Unplugged Pro Bike
S S M M L L XL XL
LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting
A head tube angle 63.2 ° 63.6 ° 63.2 ° 63.6 ° 63.2 ° 63.6 ° 63.2 ° 63.6 °
B head tube length 90.0 mm 3.5 in 90.0 mm 3.5 in 105.0 mm 4.1 in 105.0 mm 4.1 in 120.0 mm 4.7 in 120.0 mm 4.7 in 135.0 mm 5.3 in 135.0 mm 5.3 in
C top tube horizontal 548.6 mm 21.6 in 547.3 mm 21.5 in 595.5 mm 23.4 in 594.1 mm 23.4 in 628.5 mm 24.7 in 627.0 mm 24.7 in 661.4 mm 26.0 in 660.0 mm 26.0 in
D standover height 693.0 mm 27.3 in 693.0 mm 27.3 in 715.0 mm 28.1 in 715.0 mm 28.1 in 733.0 mm 28.9 in 733.0 mm 28.9 in 762.0 mm 30.0 in 762.0 mm 30.0 in
E BB offset -21.3 mm -0.8 in -16.4 mm -0.6 in -21.1 mm -0.8 in -16.1 mm -0.6 in -20.9 mm -0.8 in -15.8 mm -0.6 in -20.7 mm -0.8 in -15.6 mm -0.6 in
F BB height 340.2 mm 13.4 in 345.1 mm 13.6 in 340.3 mm 13.4 in 345.3 mm 13.6 in 340.3 mm 13.4 in 345.3 mm 13.6 in 340.3 mm 13.4 in 345.4 mm 13.6 in
G wheel base 1,205.2 mm 47.4 in 1,206.6 mm 47.5 in 1,246.9 mm 49.1 in 1,247.9 mm 49.1 in 1,283.5 mm 50.5 in 1,284.5 mm 50.6 in 1,320.1 mm 52.0 in 1,321.1 mm 52.0 in
H BB center to toptube center
I BB center to top of seattube 381.0 mm 15.0 in 381.0 mm 15.0 in 403.0 mm 15.9 in 403.0 mm 15.9 in 435.0 mm 17.1 in 435.0 mm 17.1 in 470.0 mm 18.5 in 470.0 mm 18.5 in
J seat angle 78.5 ° 79.0 ° 77.7 ° 78.1 ° 77.7 ° 78.1 ° 77.7 ° 78.1 °
K chainstay 438.4 mm 17.3 in 439.2 mm 17.3 in 438.4 mm 17.3 in 439.2 mm 17.3 in 438.4 mm 17.3 in 439.3 mm 17.3 in 438.4 mm 17.3 in 439.3 mm 17.3 in
L reach 423.3 mm 16.7 in 427.3 mm 16.8 in 458.3 mm 18.0 in 462.2 mm 18.2 in 488.3 mm 19.2 in 492.2 mm 19.4 in 518.3 mm 20.4 in 522.2 mm 20.6 in
M stack 617.6 mm 24.3 in 614.8 mm 24.2 in 631.0 mm 24.8 in 628.2 mm 24.7 in 644.5 mm 25.4 in 641.5 mm 25.3 in 657.9 mm 25.9 in 654.9 mm 25.8 in
N stem length 40.0 mm 1.6 in 40.0 mm 1.6 in 40.0 mm 1.6 in 40.0 mm 1.6 in 40.0 mm 1.6 in 40.0 mm 1.6 in 40.0 mm 1.6 in 40.0 mm 1.6 in
0 trail 583.7 mm 5.5 in 583.7 mm 5.4 in 583.7 mm 5.5 in 136.2 mm 5.4 in 138.9 mm 5.5 in 136.2 mm 5.4 in 138.9 mm 5.5 in 5.4 in
P Fork length 217.0 mm 23.0 in 217.0 mm 23.0 in 240.0 mm 23.0 in 583.7 mm 23.0 in 583.7 mm 23.0 in 583.7 mm 23.0 in 583.7 mm 23.0 in 136.3 mm 23.0 in
Q Maximum Seatpost Insertion 217.0 mm 8.5 in 217.0 mm 8.5 in 240.0 mm 9.4 in 240.0 mm 9.4 in 275.0 mm 10.8 in 275.0 mm 10.8 in 320.0 mm 12.6 in 583.7 mm 12.6 in
R Crank Length 6.7 in 6.7 in 6.7 in 170.0 mm 6.7 in 170.0 mm 6.7 in 170.0 mm 6.7 in 170.0 mm 6.7 in 320.0 mm 6.7 in
