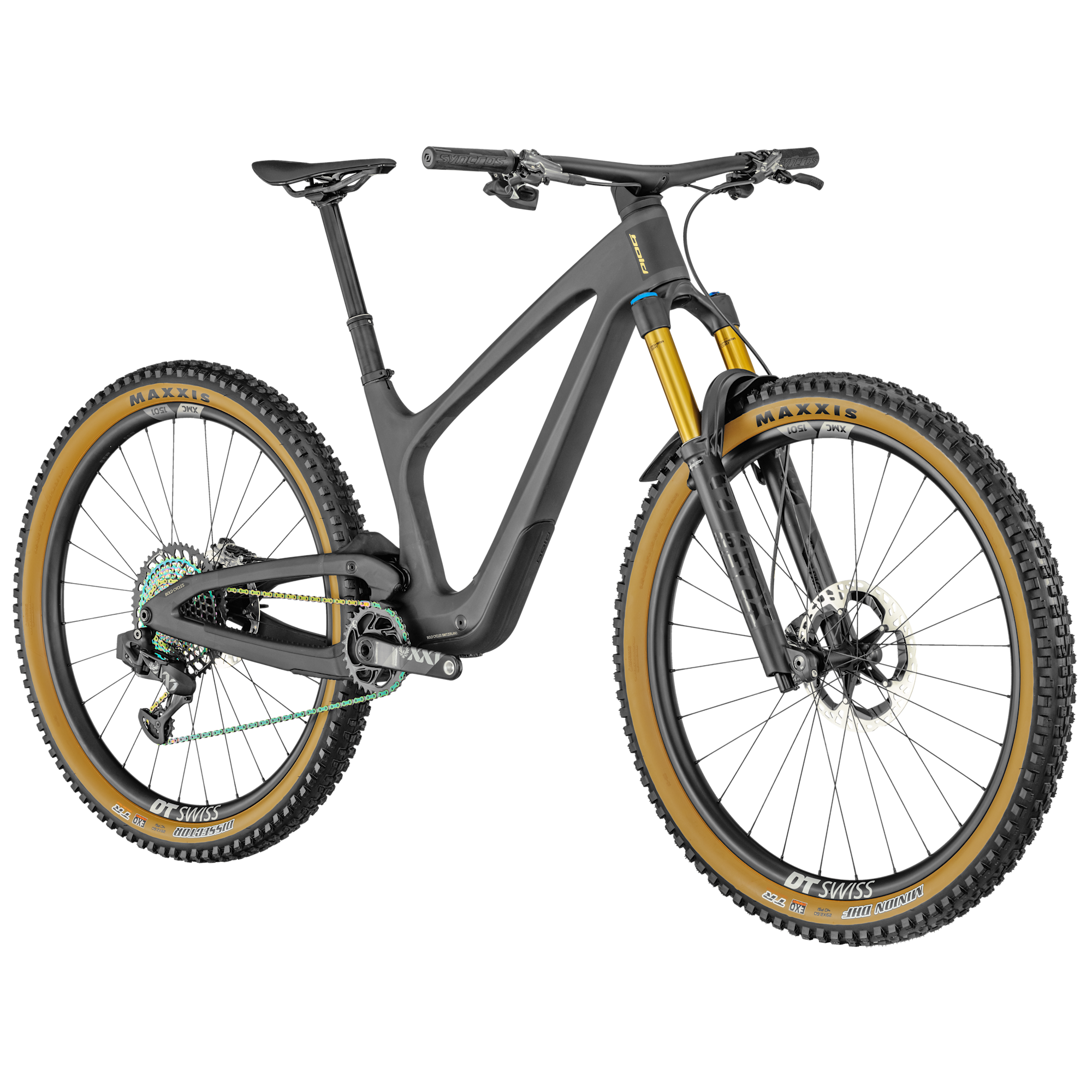

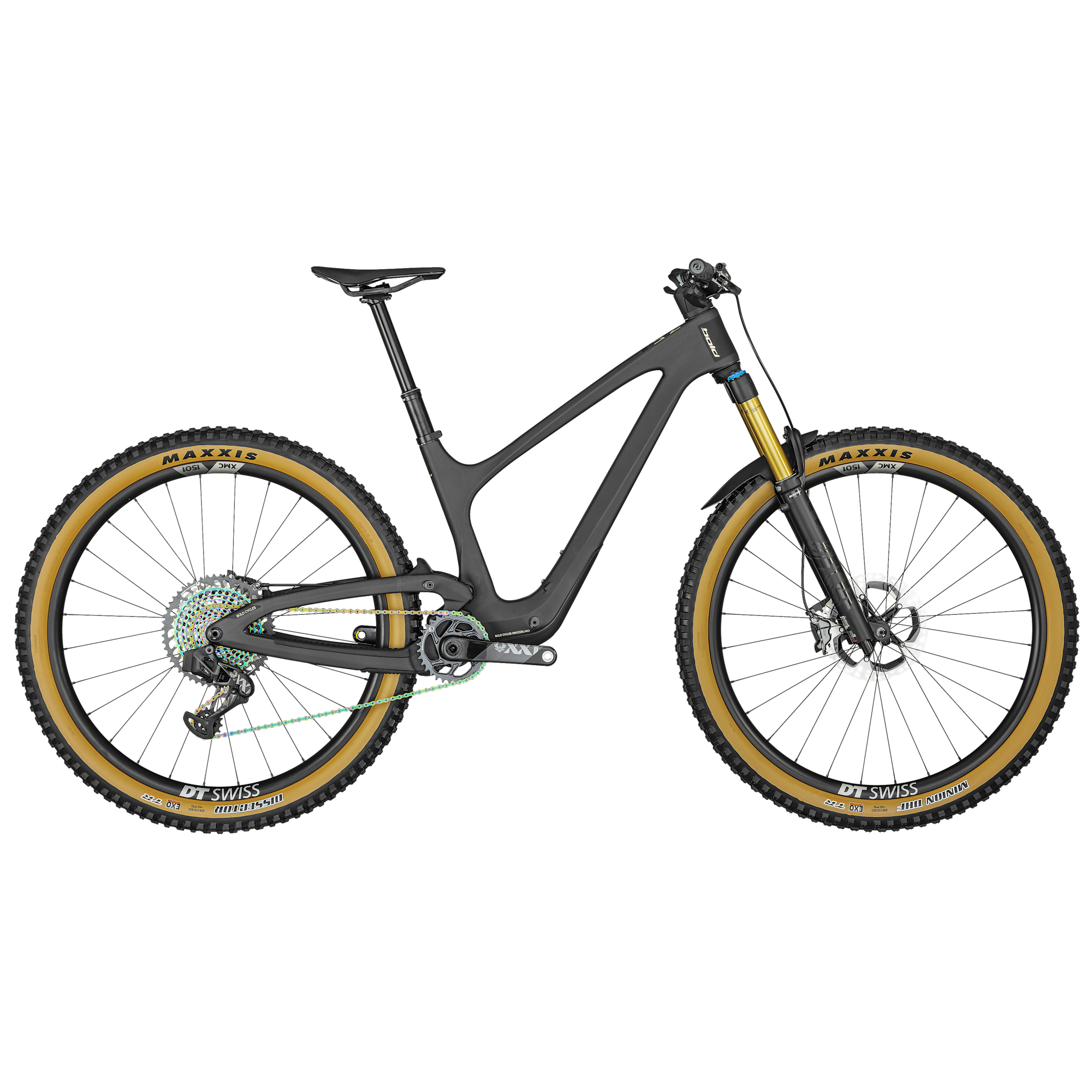

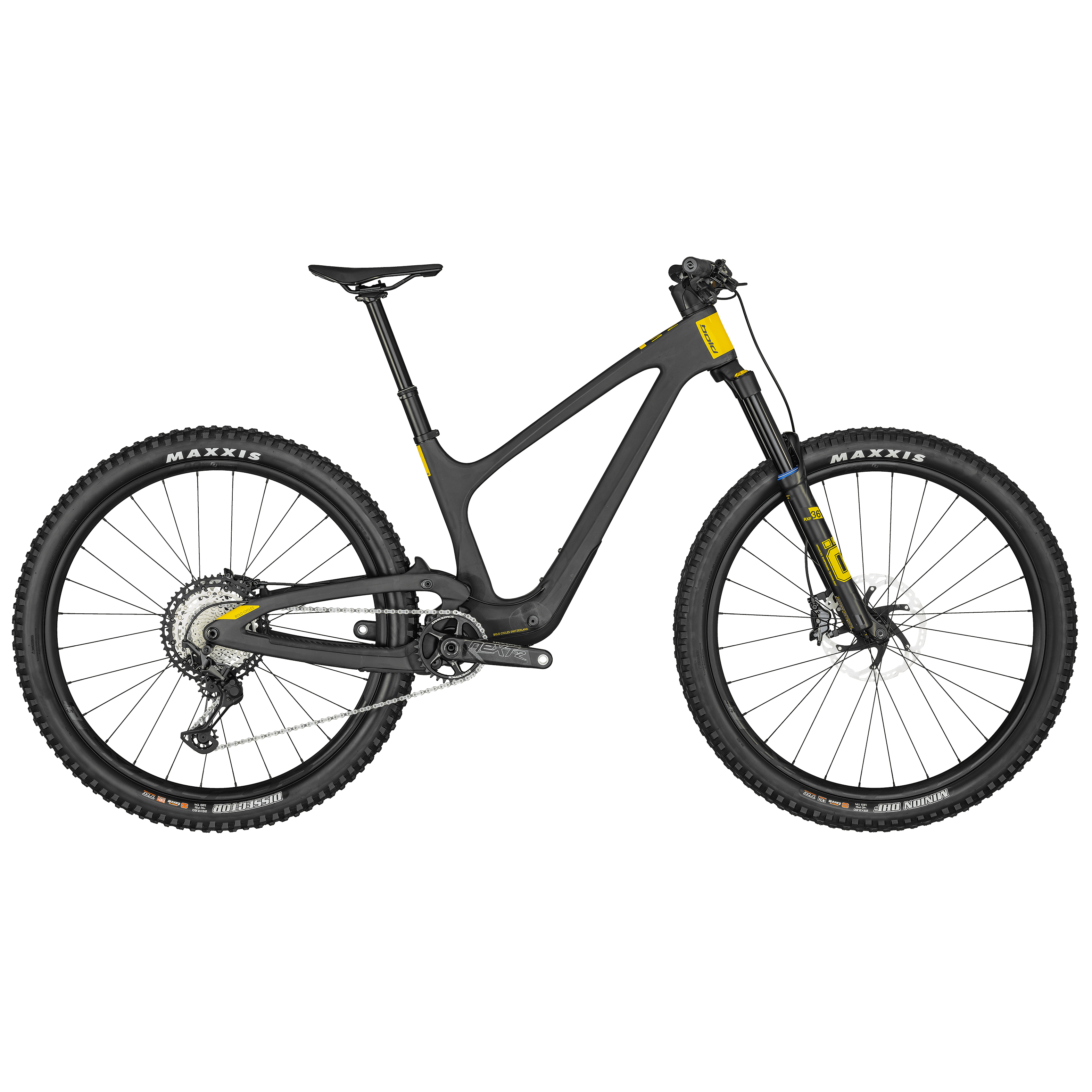

BOLD Linkin 150 Ultimate Bike
Model : 291169
Key Features
- LINKIN Carbon HMX Frame
- FOX 36 Float Factory, 150mm
- FOX Nude 5T Factory EVOL
- SRAM XX1 Eagle AXS / Wireless
- Shimano XTR M9120 4 Piston Disc
- Syncros Revelstoke 1.0S-30 CL
- Syncros Hixon iC Carbon
1. Size
SPECIFICATIONS
-
The LINKIN 150 is our approach to what the ultimate mountain bike should be. Long days in the backcountry, or just rippin' around your local, this 150mm trail platform brings the best out of every trail. Our integrated suspension design, ISTVP, keeps the center of gravity low between your feet to give the bike a planted but playful ride. An integrated "SAVE-THE-DAY" kit cleverly equips you with all the tools you'll need out in the woods. Is there such thing as n Swiss Army Knife of mountain bikes? If yes, there is a good chance it's the LINKIN 150.
Please note that bike specifications are subject to change without prior notice. -
Frame
Bold Linkin 150 / Carbon HMX
Integrated Suspension Technology / IST VP
Vario Tech, Head angle and BB height / Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline -
Fork
FOX 36 Float Factory Grip 2 Air / Kashima
HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle
44mm offset / tapered steerer
150mm travel -
Rear Shock
FOX NUDE 5T Factory EVOL Trunnion
Custom travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Custom large Air volume / DPS / Kashima / Reb. Adj.
T185X55mm / Travel 150-100-Lockout -
Remote System
TracLoc Technology
Rear Suspension & Dropper Remote
3 Rear Suspension modes
-
Rear Derailleur
SRAM XX1 Eagle AXS / 12 Speed
Wireless Electronic Shift System -
Shifters
SRAM Eagle AXS Rocker Controller -
Crankset
SRAM XX1 Eagle
Carbon crankarm
DUB / 55mm CL / 32T -
Chainguide
Bold custom -
BB-Set
SRAM DUB PF 92 MTB Wide / shell 41x92mm -
Chain
SRAM CN XX1 Eagle -
Cassette
SRAM XX1 XG1299 / 10-52 T -
Brakes
Shimano XTR M9120 4 Piston Disc -
Rotor
Shimano RT-MT900 CL / 203/F and 180/R -
Handlebar
Syncros Hixon iC Carbon
Size S & M 15mm rise / Size L & XL 25mm rise
back sweep 8° / 780mm
Syncros Endurance lock-on grips -
Seatpost
Syncros Duncan Dropper Post 1.5 34.9mm
Size S 170mm / Size M, L & XL 200mm -
Seat
Syncros Tofino Regular 1.0
Carbon rails -
Headset
Syncros - Acros Angle adjust & Cable Routing HS System
Stainless / +-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
Wheelset
Syncros Revelstoke 1.0S-30 CL
F: 15x110mm / R: 12x148mm
30mm Tubeless ready Carbon rim 28H
DT Swiss 240 Ratchet EXP 36 / XD Driver
SRAM TyreWiz / Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools -
Front Tire
Maxxis Minion DHF / 2.5" / 60TPI Foldable
Tubeless Ready / EXO -
Rear Tire
Maxxis Minion DHF / 2.5" / 60TPI Foldable
Tubeless Ready / EXO -
Extras
Save the Day Kit
SRAM AXS Powerpack
SRAM TyreWiz
Syncros Fork Fender -
Accessories
Syncros Eco Sealant -
Approx weight in KG
13Kg / 13.4kg
